Redis

AMI supports connection to Redis data stores. Use AMI to send commands to and from a Redis data store for easy integration into your AMI dashboard.

This page contains information on connecting to and using Redis.

Setup

Requirements

• Redis data store and connection details
• Redis adapter

Please contact us at support@3forge.com to get the Redis adapter assigned to your 3forge account.

Setting up the Adapter

1. Unzip the Redis files assigned to you from the client portal and add them to your AMI library in amione/lib.

2. Add the following property to your datasource plugin adapter list in local.properties:

   ami.datasource.plugins=$${ami.datasource.plugins},com.f1.ami.plugins.redis.AmiRedisDatasourcePlugin

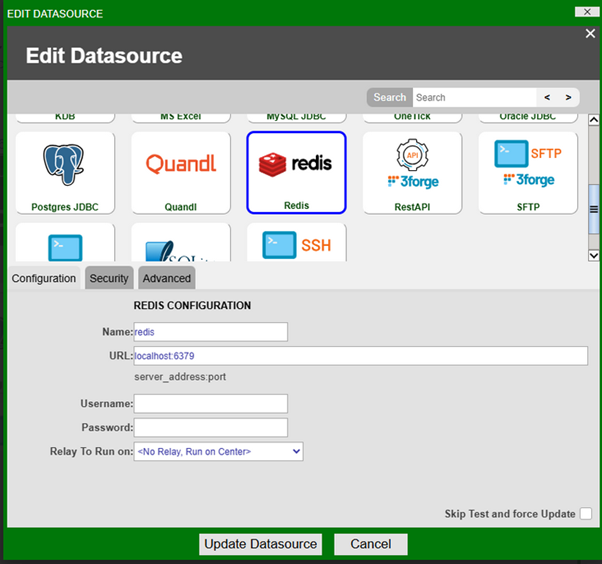

3. Restart AMI. Redis should now be available under Dashboard -> Data Modeler -> Attach Datasource.

4. Give your Redis Datasource a name and configure the URL. The URL should take the following format:

   URL: server_address:port_number




Redis Commands in AMI

AMI supports several Redis commands. For a full list of the accepted commands and their return-types in AMI, see the list below.

General Redis Command Format

The general structure of a Redis command is as follows:

COMMAND key [arguments...]

Where data is attributed to a given key and entries for that key are stored in a key-value pair structure. The key pattern naming convention is as follows:

<namespace>:<key>

Example

To create a Redis hash with the key order:1:

HSET order:1 order_id 1 customer_id 101 status "Pending" amount 100.50

Field	Value
order_id	1
customer_id	101
status	Pending
amount	100.50

Accepted Redis Commands

Redis data is stored as strings. To ensure correct data processing, please be aware of the following:

1. Almost every command accepts String as a valid return-type in AMI, but String is not iterable in AMI.
2. Some return types depend on the inclusion of optional parameters.
3. If a Redis command’s output is a number, then you may use a numeric data-type in AMI Web (int/float/double/byte/short/long).
4. String ("OK") or numeric (1/0) means whatever is in the parentheses is the default response if the query executes without error.
5. AMI redis adapter’s syntax is case insensitive.
6. Arguments in square braces ([]) are optional.
7. Arguments delimited by pipes (|) mean either/or option can be chosen.

Command Name	Arguments	Accepted AMI Return Types	Description
APPEND	key value	Numeric String	Appends a string to the value of a key
AUTH	[username] password	String	Authenticates the connection
BITCOUNT	key [start end [BYTE | BIT]]	Numeric String	Counts the number of set bits in a string
BITOP	operation destkey key [key ...]	Numeric String	Performs bitwise operations. Operations are AND OR XOR NOT
BITPOS	key bit [start [end [BYTE | BIT]]]	Numeric String	Finds the first set or clear bit in a string
BLMOVE	source destination LEFT | RIGHT LEFT | RIGHT timeout	String	Pops an element from a list, pushes it to another list and returns it
BLPOP	key [key ...] timeout	String List	Removes and returns the first element in a list
BRPOP	key [key ...] timeout	String List	Removes and returns the last element in a list
BZPOPMAX	key [key ...] timeout	String List	Removes and returns the member with the highest score from one or more sorted sets
BZPOPMIN	key [key ...] timeout	String List	Removes and returns the member with the lowest score from one or more sorted sets
COPY	source destination [DB destination-db] [REPLACE]	String (true/false)	Copies the value of a key to a new key
DBSIZE		Numeric String	Returns the number of keys in the currently-selected database
DECR	key	Numeric String	Decrements the integer value of a key by one
DECRBY	key decrement	Numeric String	Decrements the integer value of a key by the supplied decrement
DEL	key [key ...]	Numeric String (1/0)	Deletes one or more keys
DUMP	key	String Binary	Returns a serialized representation of the value stored at a key (logging will not display content, it will say "x bytes")
ECHO	message	String	Returns the given string
EVAL	script numkeys [key [key ...]] [arg [arg ...]]	Script dependent	Executes a server-side Lua script
EXISTS	key [key ...]	Numeric String	Determines whether one or more keys exist
EXPIRE	key seconds [NX | XX | GT | LT]	Numeric String	Sets the expiration time of a key in seconds
EXPIREAT	key unix-time-seconds [NX | XX | GT | LT]	Numeric String	Sets the expiration time of a key to a Unix timestamp
EXPIRETIME	key	Numeric String	Returns the expiration time of a key as a Unix timestamp
FLUSHALL		String ("OK")	Removes all keys from all databases
FLUSHDB	[ASYNC | SYNC]	String ("OK")	Removes all keys from current database
GEOADD	key [NX | XX] [CH] longitude latitude member [longitude latitude member ...]	Numeric String	Adds one or more members to a geospatial index
GEODIST	key member1 member2 [M | KM | FT | MI]	Numeric String	Returns the distance between two members of a geospatial index
GEOHASH	key member [member ...]	String List	Returns members from from a geospatial index as geohash strings
GEOPOS	key member [member ...]	String List	Returns the longitude and latitude of members from a geospatial index
GEOSEARCH	key FROMMEMBER member | FROMLONLAT longitude latitude BYRADIUS radius M | KM | FT | MI | BYBOX width height M | KM | FT | MI [ASC | DESC] [COUNT count [ANY]] [WITHCOORD] [WITHDIST] [WITHHASH]	List String	Queries a geospatial index for members inside an area of a box or a circle
GEOSEARCHSTORE	destination source FROMMEMBER member | FROMLONLAT longitude latitude BYRADIUS radius M | KM | FT | MI | BYBOX width height M | KM | FT | MI [ASC | DESC] [COUNT count [ANY]] [STOREDIST]	Numeric String	As geosearch but can optionally store the result
GET	key	Numeric (if number) String	Returns the string value of a key
GETDEL	key	Numeric (if digits only) String	Returns the string value of a key after deleting it
GETEX	key [EX seconds | PX milliseconds | EXAT unix-time-seconds | PXAT unix-time-milliseconds | PERSIST]	String Integer null	Returns the string value of a key after setting its expiration time
GETRANGE	key start end	Numeric (if numbers) String	Returns a substring of the string stored at a key
HDEL	key field [field ...]	Numeric String	Deletes one or more fields and their values from a hash. Deletes the hash if no fields remain
HEXISTS	key field	String ("true"/"false")	Determines whether a field exists in a hash
HGET	key field	Numeric (if digits) String	Returns the value of a field in a hash
HGETALL	key	String Map	Returns all fields and values in a hash
HINCRBY	key field increment	Numeric String	Increments the integer value of a field in a hash by a number
HINCRBYFLOAT	key field increment	Numeric String	Increments the floating point value of a field in a hash by a number
HKEYS	key	Set String	Returns all fields in a hash
HLEN	key	Numeric String	Returns the number of fields in a hash
HMGET	key field [field ...]	String List	Returns the values of all fields in a hash
HMSET	key field value [field value ...]	String ("OK")	Sets the values of multiple fields
HRANDFIELD	key [count [WITHVALUES]]	List (if COUNT) String (if no COUNT)	Returns one or more random fields from a hash
HSCAN	key cursor [MATCH pattern] [COUNT count]	List String	Iterates over fields and values of a hash
HSET	key field value [field value ...]	Numeric String	Creates or modifies the value of a field in a hash
HSETNX	key field value	Numeric String	Sets the value of a field in a hash only when the field doesn't exist
HSTRLEN	key field	Numeric String	Returns the length of the value of a field
HVALS	key	String List	Returns all values in a hash
INCR	key	Numeric String	Increments the integer value of a key by one
INCRBY	key increment	Numeric String	Increments the integer value of a key by a number
INCRBYFLOAT	key increment	Numeric String	Increments the floating point value of a key by a number
INFO	[section [section ...]]	String	Returns information and statistics about the server
KEYS	pattern	Set String	Returns all key names that match a pattern
LASTSAVE		Numeric String	Returns the Unix timestamp of the last successful save to disk
LCS	key1 key2 [LEN] [IDX] [MINMATCHLEN len] [WITHMATCHLEN]	String (if no options) Numeric/String (if LEN) List/String (if IDX or WITHMATCHLEN)	Finds the longest common substring
LINDEX	key index	Numeric (if number) String	Returns an element from a list by its index
LINSERT	key BEFORE | AFTER pivot element	String Integer	Inserts an element before or after another element in a list
LLEN	key	String Integer	Returns the length of a list
LMOVE	source destination LEFT | RIGHT LEFT | RIGHT	String Numeric	Returns an element after popping it from one list and pushing it to another
LMPOP	numkeys key [key ...] LEFT | RIGHT [COUNT count]	List String	Returns multiple elements from a list after removing them
LPOP	key [count]	String (without COUNT) Numeric (if element is number) List/String (with COUNT)	Returns the first elements in a list after removing it
LPOS	key element [RANK rank] [COUNT num-matches] [MAXLEN len]	List/String (with COUNT) Numeric/String (without COUNT)	Returns the index of matching elements in a list
LPUSH	key element [element ...]	Numeric String	Prepends one or more elements to a list
LPUSHX	key element [element ...]	Numeric String	Prepends one or more elements to a list only when the list exists
LRANGE	key start stop	List String	Returns a range of elements from a list
LREM	key count element	Numeric String	Removes an element from a list
LSET	key index element	String ("OK")	Sets the value of an element in a list by its index
LTRIM	key start stop	String ("OK")	Removes elements from both ends of a list
MGET	key [key ...]	List String	Automatically returns the string values of one or more keys
MSETNX	key value [key value ...]	Numeric String	Automatically modifies the string values of one or more keys only when all keys don't exist
PERSIST	key	Numeric String	Removes the expiration time of a key
PEXPIRE	key milliseconds [NX | XX | GT | LT]	Numeric String	Sets the expiration time of a key in milliseconds
PEXPIREAT	key unix-time-milliseconds [NX | XX | GT | LT]	Numeric String	Sets the expiration time of a key to a Unix milliseconds timestamp
PEXPIRETIME	key	Numeric String	Returns the expiration time of a key as a Unix milliseconds timestamp
PING	[message]	Numeric (if numbers ) String	Returns the server's liveliness response
RANDOMKEY		String Numeric/String (if numbers)	Returns a random key name from the database
RENAME	key newkey	String ("OK")	Renames a key and overwrites the destination
RENAMENX	key newkey	Numeric (1/0)	Renames a key only when the target key name doesn't exist
RESTORE	key ttl serialized-value \[REPLACE\] \[ABSTTL\] \[IDLETIME seconds\] \[FREQ frequency\]	String ("OK")	Creates a key from the serialized representation of the value. Serialized values work differently in AMI because we do not have a base 32 binary string. Example usage: execute set a 1; Binary b = execute dump a; string s = execute RESTORE a 16597119999999 "\${binaryToStr16(b)}" replace absttl; string res = execute get a; session.log(res);
RPOP	key [count]	Numeric/String (without COUNT) List/String (with COUNT)	Returns and removes the last elements of a list
RPUSH	key element [element ...]	Numeric String	Appends one or more elements to a list
RPUSHX	key element [element ...]	Numeric String	Appends one or more elements to a list only if the list exists
SADD	key member [member ...]	Numeric	Adds one or more members to a set
SAVE		String ("OK")	Synchronously saves the database(s) to disk
SCAN	cursor [MATCH pattern] [COUNT count] [TYPE type]	List String	Iterates over the key names in the database
SCARD	key	Numeric String	Returns the number of members in a set
SDIFF	key [key ...]	String List	Returns the difference of multiple sets
SDIFFSTORE	destination key [key ...]	Numeric String	Stores the difference of multiple sets in a key
SET	key value [NX | XX] [GET] [EX seconds | PX milliseconds | EXAT unix-time-seconds | PXAT unix-time-milliseconds | KEEPTTL]	String ("OK")	Sets the string valeue of a key, ignoring its type
SETBIT	key offset value	Numeric String (1/0)	Sets or clears the bit at offset of the string value
SETEX	key seconds value	String ("OK")	Sets the string value and expiration time of a key
SETNX	key value	Numeric (0/1)	Sets the string value of a key only if the key doesn't already exist
SETRANGE	key offset value	Numeric String	Overwrites a part of a string value with another by an offset
SINTER	key [key ...]	Set String	Returns the intersect of multiple sets
SINTERCARD	numkeys key [key ...] [LIMIT limit]	Numeric String	Returns the number of members of the intersect of multiple sets
SINTERSTORE	destination key [key ...]	Numeric String	Stores the intersect of multiple sets in a key
SISMEMBER	key member	String (true/false)	Determines whether a member belongs to a set
SMEMBERS	key	Set String	Returns all members of a set
SMISMEMBER	key member [member ...]	List String	Determines whether multiple members belong to a set
SMOVE	source destination member	Numeric	Moves a member from one set to another
SORT	key [BY pattern] [LIMIT offset count] [GET pattern [GET pattern ...]] [ASC | DESC] [ALPHA] [STORE destination]	List/String (without STORE) Numeric (with STORE)	Sorts the elements in a list, set, or sorted set, optionally storing the result
SORT_RO	key [BY pattern] [LIMIT offset count] [GET pattern [GET pattern ...]] [ASC | DESC] [ALPHA]	List String	Returns the sorted elements of a list, set, or sorted set
SPOP	key [count]	Set/String (with COUNT) Numeric/String (without COUNT)	Returns one or more random members from a set after removing them
SRANDMEMBER	key [count]	List String	Get one or multiple random members from a set
SREM	key member [member ...]	Numeric String	Removes one or more members from a set
SSCAN	key cursor [MATCH pattern] [COUNT count]	List String	Iterates over members of a set
STRLEN	key	Numeric String	Returns the length of a string value
SUBSTR	key start end	String	Returns a substring from a string value
SUNION	key [key ...]	Set String	Returns the union of multiple sets
SUNIONSTORE	destination key [key ...]	Numeric String	Stores the union of multiple sets in a key
TIME		List String	Returns the server time
TOUCH	key [key ...]	Numeric String	Returns the number of existing keys out of those specified after udpating the time they were last accessed
TTL	key	Numeric String	Returns the expiration time in seconds of a key
TYPE	key	String	Determines the type of value stored at a key
UNLINK	key	Numeric String	Asynchronously deletes one or more keys
ZADD	key [NX | XX] [GT | LT] [CH] [INCR] score member [score member ...]	Numeric String	Adds one or more members to a sorted set or updates their scores
ZCARD	key	Numeric String	Returns the number of members in a sorted set
ZCOUNT	key min max	Numeric String	Returns the count of members in a sorted set that have scores within a range
ZDIFF	numkeys key [key ...] [WITHSCORES]	Set String	Returns the difference between multiple sorted sets
ZDIFFSTORE	destination numkeys key [key ...]	Numeric String	Stores the difference of multiple sorted sets in a key
ZINCRBY	key increment member	Numeric String	Increments the score of a member in a sorted set
ZINTER	numkeys key [key ...] [WEIGHTS weight [weight ...]] [AGGREGATE SUM | MIN | MAX] [WITHSCORES]	List/String (with WITHSCORES) Set/String (without WITHSCORES)	Returns the intersect of multiple sorted sets
ZINTERCARD	numkeys key [key ...] [LIMIT limit]	Numeric String	Returns the number of members of the intersect of multiple sorted sets
ZINTERSTORE	destination numkeys key [key ...] [WEIGHTS weight [weight ...]] [AGGREGATE SUM | MIN | MAX]	Numeric String	Stores the intersect of multiple sorted sets in a key
ZLEXCOUNT	key min max	Numeric	Returns the number of members in a sorted set within a lexicographical range
ZMPOP	numkeys key [key ...] MIN | MAX [COUNT count]	List String	Returns the highest or lowest scoring members from one or more sorted sets after removing them
ZMSCORE	key member [member ...]	List String	Returns the score of one or more members in a sorted set
ZPOPMAX	key [count]	List String	Returns the highest scoring members from a sorted set after removing them
ZPOPMIN	key [count]	List String	Returns the lowest scoring members from a sorted set after removing them
ZRANDMEMBER	key [count [WITHSCORES]]	List String	Returns one or more random members from a sorted set
ZRANGE	key start stop [BYSCORE | BYLEX] [REV] [LIMIT offset count] [WITHSCORES]	Set String	Returns members in a sorted set within a range of indexes
ZRANGESTORE	dst src min max [BYSCORE | BYLEX] [REV] [LIMIT offset count]	Numeric String	Stores a range of members from a sorted set in a key
ZRANK	key member	String Null	Returns the index of a member in a sorted set ordered by ascending scores
ZREM	key member [member ...]	Numeric String	Removes one or more members from a sorted set
ZREMRANGEBYLEX	key min max	Numeric String	Removes members in a sorted set within a lexicographical range
ZREMRANGEBYRANK	key start stop	Numeric String	Removes members in a sorted set within a range of indexes
ZREMRANGEBYSCORE	key min max	Numeric String	Removes members in a sorted set within a range of scores
ZREVRANK	key member	Numeric String	Returns the index of a member in a sorted set ordered by descending scores
ZSCAN	key cursor [MATCH pattern] [COUNT count]	List String	Iterates over members and scores of a sorted set
ZSCORE	key member	Numeric String	Returns the score of a member in a sorted set
ZUNION	numkeys key [key ...] [WEIGHTS weight [weight ...]] [AGGREGATE SUM | MIN | MAX] [WITHSCORES]	List String	Returns the union of multiple sorted sets
ZUNIONSTORE	destination numkeys key [key ...] [WEIGHTS weight [weight ...]] [AGGREGATE SUM | MIN | MAX]	Numeric String	Stores the union of multiple sorted sets in a key

For more information on a specific method, see its entry in the Redis commands documentation.

Example: Building a Table in AMI from Redis Data

Ensure that you have a Redis adapter configured as shown in the setup steps above.

In this example, a Redis database is configured in AMI with the following hashed data:

HSET order:1 order_id 1 customer_id 101 status "Pending" amount 100.50
HSET order:2 order_id 2 customer_id 102 status "Shipped" amount 59.99
HSET order:3 order_id 3 customer_id 103 status "Delivered" amount 230.00
HSET order:4 order_id 4 customer_id 104 status "Cancelled" amount 12.00
HSET order:5 order_id 5 customer_id 105 status "Pending" amount 75.25

To create a table with this data, navigate to the Data Modeler to create a new datamodel. In the onProcess() tab of the datamodel creation wizard:

// 1. Create a new table with column names
create table orders (order_id string, customer_id string, status string, amount string);

// 2. Get all Redis keys matching order:*
list keys = USE ds="redis" EXECUTE KEYS order:*;

// 3. Loop through keys and build rows
for (string key: keys) {
    map rowData = USE ds="redis" EXECUTE HGETALL ${key};
    insert into orders values (rowData.get("order_id"), rowData.get("customer_id"), rowData["status"], rowData["amount"]); //both java and python-like syntax work!
}

This does three things:

1. creates an empty table with the correct headings corresponding to the Redis data: order_id, customer_id, status, and amount.
2. retrieves the keys from the Redis database using a supported Redis command and stores it in an AMI-compatible data structure.
3. populates the table with the Redis data based on the key.
